DOD Large Character Printer for Cartons, Bags and Pipes

When you need bold, highly readable codes on corrugated cartons, woven sacks or extruded pipe, a standard small-character system often struggles with the surface. The WDOTMARK large character printer line is built for exactly this job: a handheld DOD inkjet printer that places clear, large-format text and numbers directly onto rough, uneven or curved materials. It is a practical choice for warehouses, building-material suppliers and chemical packers who mark cases and sacks one at a time rather than on a high-speed conveyor. If you are sourcing a DOD inkjet printer for a distribution or packaging operation, this page explains what the technology does, where it fits, and how to choose between DOD, CIJ and handheld TIJ.

What a DOD Large Character Printer Does

Drop-on-demand (DOD) large character coding is a contact-free inkjet method that produces bigger, bolder characters than small-character CIJ. Instead of fine print for a label or bottle, it is designed to be read at a distance — on the side of a carton, across a stacked pallet, or on the wall of a pipe.

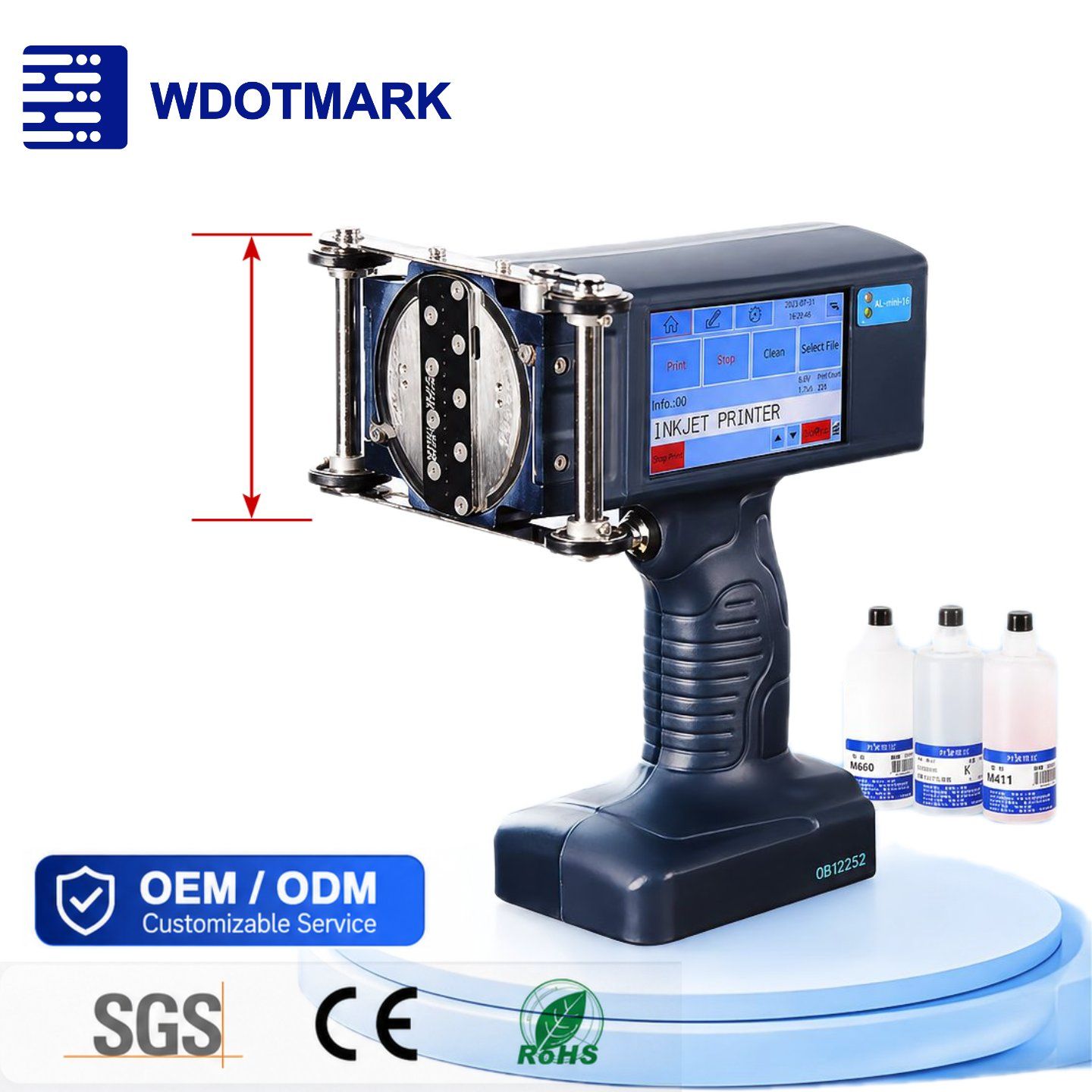

The WDOTMARK large character handheld inkjet printer is a portable unit. An operator walks the line or the storage bay and prints directly onto the product. There is no need to stop a conveyor or send goods to a separate labelling station.

Typical characteristics of this format:

• Built for rough and porous surfaces such as cardboard, woven polypropylene and construction tube
• Handheld form factor suited to single items, mixed SKUs and small batches
• Large, highly legible characters that stay readable after handling and stacking
• No contact with the substrate, so no roller wear and no crushing of fragile packaging
• Simple operation — codes can be entered and adjusted on the device

Because surface conditions vary so widely in these applications, exact print height, resolution and line speed depend on the material and the message. Those parameters are confirmed on inquiry, so our engineers can match the configuration to your carton board, sack weave or pipe diameter rather than quoting a generic number.

Applications

Large character coding is used wherever the marked item is bulky, rough or produced in modest volumes. The most common settings include:

• Logistics and shipping cartons — printing batch numbers, production dates, destination codes and handling text directly onto corrugated cases before dispatch.
• Building materials and pipe — marking extruded pipe, profiles and construction supplies where the surface is curved, dusty or difficult to label.
• Woven bags and chemical packaging — coding sacks, woven bags and chemical packaging with product information that must remain visible through storage and transport.

These are frequently single-piece and small-batch jobs. A handheld large character printer lets an operator code one carton or one length of pipe without setting up a full production line. For operations that later move to higher volumes, the same marking principle scales into inline equipment — see our /industrial-inkjet-printer/ range for conveyor-integrated options.

Consumables are a normal part of ownership. WDOTMARK supplies compatible consumables and fast-drying ink cartridges through our /ink-cartridges-consumables/ page, so you can keep a handheld unit running without long sourcing cycles.

DOD vs CIJ vs Handheld TIJ

These three inkjet technologies overlap in name but serve different jobs. Choosing the wrong one is the most common reason a marking project underperforms.

• DOD large character printer — best for rough, porous or uneven surfaces such as cartons, woven bags and pipe. Large, bold characters, handheld operation, well suited to single items and small batches.
• CIJ (continuous inkjet) — best for high-speed lines producing small characters on many units per minute. Our /cij-printer/ models, including the WDOTMARK F640, F650, F660 and F680, use a 10-inch colour screen and 60/70μm nozzles, with dye-based ink, 1–3 line printing and a 5–40mm print distance. A 2700mm conduit gives installers flexibility on the line.
• Handheld TIJ (thermal inkjet) — best for high-resolution, crisp codes on smoother surfaces. The A-series handheld models (A50, A1000, CD12, CD25, D12, mini) and the T6/T9 range cover cartons, labels and general packaging where fine print quality matters more than character size.

A simple way to decide:

• Rough surface, large text, low volume → DOD large character
• Fast line, small text, high volume → CIJ
• Smooth surface, fine detail, portable use → handheld TIJ

Many facilities end up running more than one of these. A warehouse may use a large character printer for outbound cartons and a CIJ system on the filling line. You can review the wider equipment set on our /laser-marking-systems/ and /applications/ pages before committing to a configuration.

If you are also considering laser marking for metal or plastic parts, our /fiber-laser-marking-machine/ and /uv-laser-marking-machine/ lines cover those materials — laser and inkjet are often used side by side in the same plant.

Request a Free Marking Test

The fastest way to confirm whether a DOD large character printer fits your product is to test it on your actual carton, sack or pipe. Send us a sample description or a photo of the surface, along with the text, batch data and daily volume you need, and our engineers will recommend a configuration and confirm the relevant parameters on inquiry.

WDOTMARK is based in Guangzhou, China, and is an SGS-audited supplier. MOQ starts from 1 unit, confirmed on inquiry, with delivery up to 15 days. Certificates are available upon request.

• Email: sales@fiberlasermarker.com
• WhatsApp: +86 193 0303 6632

Talk to an Engineer and get a marking recommendation for your carton, bag or pipe application.
